Setting Up Grafana (Automated with Ansible)

Previous: Managing Secrets with Vault

Your Raspberry Pi needs a visualization platform to display metrics and create dashboards. In this guide, we'll deploy Grafana using automated Ansible - giving you a powerful open-source visualization tool ready in minutes.

What this tutorial covers:

• Automated Grafana deployment using Ansible
• Configuring Grafana admin password
• Exposing Grafana via Cloudflare tunnel at grafana.iac-toolbox.com
• Accessing and exploring the Grafana UI

Time to complete: 5-10 minutes (automated deployment)

Github Repository

All the configuration and deployment scripts from this guide are available in https://github.com/IaC-Toolbox/iac-toolbox-raspberrypi. Clone it and follow along!

What is Grafana?

Grafana is an open-source analytics and visualization platform that lets you query, visualize, alert on, and explore your metrics. Think of it as a dashboard for your infrastructure - you can see real-time graphs of CPU usage, memory consumption, network traffic, and anything else you want to monitor.

Why Grafana?

• Open Source & Free: Community edition is completely free with no limitations
• Beautiful Dashboards: Create stunning, interactive visualizations of your data
• Wide Data Source Support: Works with Prometheus, InfluxDB, Elasticsearch, and 50+ other sources
• Lightweight: Runs efficiently on Raspberry Pi ARM64 architecture
• Powerful Alerting: Set up alerts for when things go wrong
• Active Community: Thousands of pre-built dashboards you can import

Architecture Overview

Here's how Grafana fits into your infrastructure:

How it works:

1. Ansible reads your configuration from .env file
2. Grafana is deployed automatically via Docker Compose
3. Admin password is set from GRAFANA_ADMIN_PASSWORD environment variable
4. Password backup is optionally stored in Vault (if Vault is running)
5. Cloudflare Tunnel exposes Grafana securely at grafana.iac-toolbox.com
6. Systemd manages the Grafana service for auto-start on reboot

Prerequisites

Before starting, ensure you have:

• Cloned the iac-toolbox-raspberrypi repository
• Raspberry Pi accessible via SSH
• Ansible installed on your local machine (Mac/Linux)
• Docker installed on Raspberry Pi
• Cloudflare tunnel configured (optional, for remote access)

Step 1: Configure Grafana Password

Add your Grafana admin password to the .env file. The password can be any string you choose.

Navigate to the Ansible configuration directory:

cd ansible-configurations

Option 1: Generate a secure random password (recommended)

# Generate and add to .env file
echo "GRAFANA_ADMIN_PASSWORD=$(openssl rand -base64 32)" >> .env

Option 2: Set your own password

Edit .env and add:

GRAFANA_ADMIN_PASSWORD=YourSecurePassword123!

Important notes:

• The password can be any string - there are no special requirements
• Choose something memorable or use a password manager
• The password will be automatically backed up to Vault if Vault is running

Verify the password was added:

grep GRAFANA_ADMIN_PASSWORD .env

Step 2: Deploy Grafana with Ansible

Load the environment variables and run the Ansible playbook:

# Load .env file
source .env

# Deploy Grafana
./run-playbook.sh playbooks/main.yml --tags grafana

The Ansible playbook will automatically:

1. Read GRAFANA_ADMIN_PASSWORD from your environment
2. Create Grafana directory structure on Raspberry Pi (/home/user/grafana/)
3. Generate docker-compose.yml with your password
4. Pull the Grafana Docker image
5. Create systemd service for auto-start on reboot
6. Start Grafana container
7. Create shared monitoring Docker network
8. Backup password to Vault (if Vault is running)

What gets deployed:

# Generated docker-compose.yml on Raspberry Pi
services:
  grafana:
    image: grafana/grafana:latest
    container_name: grafana
    restart: unless-stopped
    ports:
      - "3000:3000"
    volumes:
      - grafana_data:/var/lib/grafana
    environment:
      - GF_SECURITY_ADMIN_USER=admin
      - GF_SECURITY_ADMIN_PASSWORD=<your-password>
      - GF_SERVER_ROOT_URL=https://grafana.iac-toolbox.com
      - GF_SERVER_DOMAIN=grafana.iac-toolbox.com
    networks:
      - monitoring

volumes:
  grafana_data:

networks:
  monitoring:
    name: monitoring
    driver: bridge

Watch the deployment progress - it should complete in 1-2 minutes.

Step 3: Verify Deployment

Check that Grafana is running:

# Check container status
ssh <your-user>@<raspberry-pi> 'docker ps | grep grafana'

# Check systemd service
ssh <your-user>@<raspberry-pi> 'sudo systemctl status grafana'

# Test local access
ssh <your-user>@<raspberry-pi> 'curl -f http://localhost:3000/api/health'

Expected output: {"database":"ok"}

Step 4: Access Grafana UI

Option 1: Via Cloudflare Tunnel (recommended)

Open your browser and navigate to:

https://grafana.iac-toolbox.com

Option 2: Local Access

http://<raspberry-pi-ip>:3000

Login credentials:

• Username: admin
• Password: The password you set in .env file

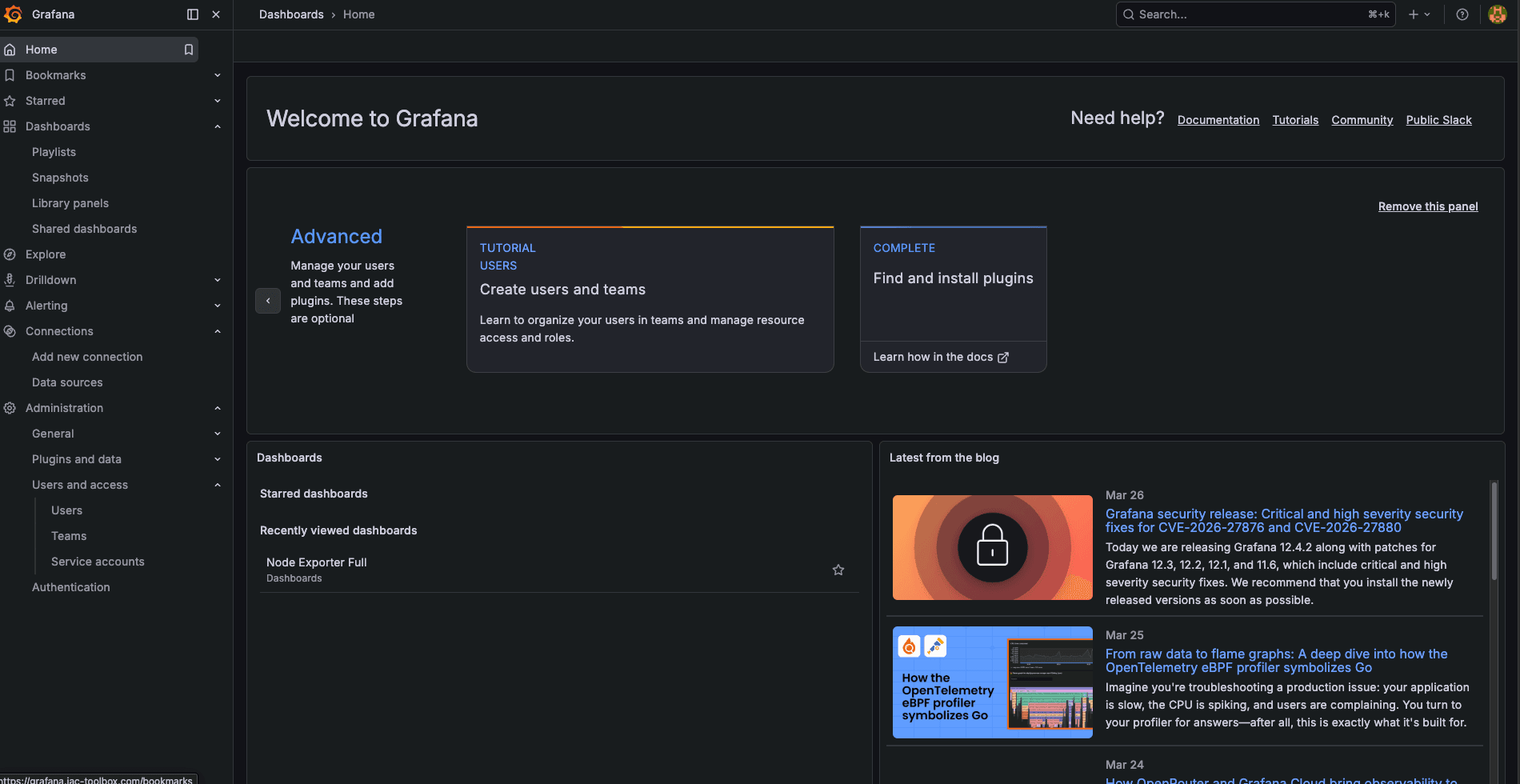

You should see the Grafana welcome screen!

Step 5: Explore Grafana UI

Since this is Phase 1, you won't have any data sources or dashboards yet. Let's explore what's available:

What You Can Do Now

1. Explore the Interface

   • Navigate through the menu (☰ icon)
   • Check out "Connections" → "Data sources" (empty for now)
   • Browse "Dashboards" (none yet)
   • Review "Configuration" settings

2. User Management

   • Go to "Administration" → "Users"
   • See your admin account
   • Can add additional users/viewers if needed

3. Check Settings

   • Your Grafana is configured for: https://grafana.iac-toolbox.com
   • Admin user: admin
   • Data persisted in Docker volume
   • Connected to monitoring Docker network

What's Next?

This completes Grafana setup! You now have:

• ✅ Grafana running and accessible
• ✅ Secure admin login configured
• ✅ Cloudflare tunnel exposing HTTPS endpoint
• ✅ Systemd service for auto-start on reboot
• ✅ Shared Docker network ready for other services

Next Step: Add Prometheus In the next tutorial, we'll add Prometheus and Node Exporter to collect and store metrics. This will give you real data to visualize in Grafana!

Troubleshooting

Ansible Deployment Fails

Check environment variable is set:

cd ansible-configurations
grep GRAFANA_ADMIN_PASSWORD .env

If missing, add it:

echo "GRAFANA_ADMIN_PASSWORD=$(openssl rand -base64 32)" >> .env
source .env

Re-run deployment:

./run-playbook.sh playbooks/main.yml --tags grafana

Container Won't Start

Check Grafana logs:

ssh <your-user>@<raspberry-pi> 'docker logs grafana'

Check systemd service:

ssh <your-user>@<raspberry-pi> 'sudo journalctl -u grafana -n 50'

Restart manually:

ssh <your-user>@<raspberry-pi> 'sudo systemctl restart grafana'

Can't Access via Cloudflare

Verify tunnel is running:

ssh <your-user>@<raspberry-pi> 'sudo systemctl status cloudflared'

Check Cloudflare tunnel configuration includes Grafana:

ssh <your-user>@<raspberry-pi> 'cat ~/.cloudflared/config.yml'

Should include:

- hostname: grafana.iac-toolbox.com
  service: http://localhost:3000

Grafana Login Fails

Check your password in .env file:

cd ansible-configurations
grep GRAFANA_ADMIN_PASSWORD .env

Reset password and redeploy:

# Update .env with new password
nano .env

# Redeploy
source .env
./run-playbook.sh playbooks/main.yml --tags grafana

The docker-compose.yml will be regenerated with the new password.

Reset Grafana Completely

If you need to start fresh:

# SSH to Pi
ssh <your-user>@<raspberry-pi>

# Stop and remove
sudo systemctl stop grafana
docker stop grafana
docker rm grafana

# Remove data volume (optional - loses all dashboards/settings)
docker volume rm grafana_grafana_data

# Redeploy
exit
cd ansible-configurations
source .env
./run-playbook.sh playbooks/main.yml --tags grafana

Summary

Congratulations! You've successfully deployed Grafana using automated Ansible configuration.

✅ What You Accomplished:

• Grafana visualization platform deployed
• Secure password configuration via .env
• Systemd service for automatic startup
• Cloudflare tunnel for HTTPS access
• Shared Docker network created for future services

📝 Key Files Created:

• /home/<user>/grafana/docker-compose.yml - Container configuration
• /etc/systemd/system/grafana.service - Systemd service
• Vault backup: kv/observability/grafana (if Vault running)

🔑 Access Details:

• URL: https://grafana.iac-toolbox.com
• Username: admin
• Password: Your GRAFANA_ADMIN_PASSWORD from .env

🎯 What Makes This Different:

Unlike manual deployment, this automated approach:

• Takes 5 minutes instead of 20-25 minutes
• Eliminates human error in configuration
• Password can be any string you choose
• Automatically backed up to Vault
• Survives reboots (systemd managed)
• Integrated with your infrastructure

🚀 Next Tutorial:

Ready to see actual metrics? Continue with the Prometheus setup guide to add metrics collection and Node Exporter. You'll get system monitoring dashboards showing CPU, memory, disk, and network stats in real-time!
