Managing Secrets with HashiCorp Vault

Viktor Vasylkovskyi•

Previous: Managing Secrets

Applications running on your Raspberry Pi need sensitive data like API keys, database passwords, and authentication tokens. In this guide, we'll set up HashiCorp Vault - a production-grade secrets management system that addresses the security limitations of the Ansible Vault approach.

Coming from the beginner guide? If you haven't already, check out Managing Secrets with Ansible Vault first. This guide builds on those concepts but eliminates the core security flaw: secrets written to plain text files on disk.

What this tutorial covers:

  • Automated Vault deployment using Ansible
  • Docker Compose setup with auto-unseal on boot
  • Cloudflare tunnel for secure remote access
  • Creating and managing secrets via UI and CLI
  • GitHub Actions integration with proper syntax
  • Security best practices and troubleshooting

Time to complete: 15-20 minutes

Github Repository

All the Vault configuration and deployment scripts from this guide are available in https://github.com/IaC-Toolbox/iac-toolbox-raspberrypi. Feel free to clone it and follow along!

How HashiCorp Vault Improves Security

This approach addresses all the major security flaws from the Ansible Vault method:

Problem → Solution

  • ❌ Plain text secrets on disk (/etc/raspberrypi.env):

    • ✅ Secrets stay encrypted in Vault's storage - Never written to plain text files

  • ❌ Any SSH user can read /etc/raspberrypi.env:

    • ✅ Token-based access control - Only authorized applications with valid tokens can read secrets

  • ❌ No audit trail of who accessed what:

    • ✅ Complete audit logging - Every secret read is logged with timestamp and accessor

  • ❌ All-or-nothing access (you see the whole file or nothing):

    • ✅ Granular policies - Create tokens that can only read specific secret paths

  • ❌ Secrets visible in process memory and /proc/:

    • ✅ Fetch on-demand - Applications request secrets only when needed, can refresh them

Developer Experience Improvements

Beyond security, Vault also makes day-to-day operations easier:

  • Web UI - Manage secrets visually instead of editing encrypted YAML files
  • Versioning - Track secret changes over time, rollback if needed
  • API-first design - Easy integration with any language or framework
  • No local .env files - Update production secrets directly in Vault UI from anywhere

The Strategy

We're going to:

  1. Deploy Vault on Raspberry Pi using automated Ansible role
  2. Set up automated unsealing on boot via systemd
  3. Configure Cloudflare tunnel for remote access
  4. Store secrets in Vault's KV v2 engine
  5. Configure GitHub Actions to fetch secrets at runtime

Architecture Overview

Automated Deployment with Ansible

This guide uses an automated Ansible role that handles all the setup. The role is available in the repository at ansible-configurations/playbooks/roles/vault/.

Quick Start

  1. Configure inventory (edit ansible-configurations/inventory/group_vars/all.yml):
vault:
  enabled: true
  version: "latest"
  base_dir: "/home/{{ ansible_user }}/vault"
  port: 8200
  enable_kv: true
  enable_audit: true

cloudflare:
  enabled: true
  tunnel_name: main-backend-tunnel
  domains:
    - hostname: vault.iac-toolbox.com
      service_port: 8200
  1. Deploy Vault:
cd ansible-configurations
ansible-playbook -i inventory/all.yml playbooks/main.yml --tags vault
  1. Save credentials displayed in Ansible output

Docker Compose Configuration

The Ansible role creates this docker-compose.yml (no manual creation needed):

services:
  vault:
    image: hashicorp/vault:latest
    container_name: vault
    restart: unless-stopped
    ports:
      - "8200:8200"
    environment:
      VAULT_ADDR: 'http://0.0.0.0:8200'
    cap_add:
      - IPC_LOCK
    volumes:
      - ./config:/vault/config:ro
      - ./data:/vault/data
      - ./logs:/vault/logs
    command: server
    healthcheck:
      test: ["CMD", "sh", "-c", "vault status || true"]
      interval: 10s
      timeout: 5s
      retries: 3

  vault-unsealer:
    image: hashicorp/vault:latest
    container_name: vault-unsealer
    restart: "no"
    depends_on:
      vault:
        condition: service_healthy
    environment:
      VAULT_ADDR: 'http://vault:8200'
    volumes:
      - ./scripts:/scripts:ro
      - ./data:/vault/data
    entrypoint: ["/bin/sh", "/scripts/auto-unseal.sh"]
    profiles:
      - unseal

Key Points:

  • No version field (obsolete in Docker Compose v2)
  • Health check accepts sealed/uninitialized states
  • Unsealer runs via profile (triggered by Ansible)

Vault Server Configuration

The Ansible role creates config/vault.hcl:

ui = true

listener "tcp" {
  address     = "0.0.0.0:8200"
  tls_disable = 1
}

storage "file" {
  path = "/vault/data"
}

api_addr = "http://0.0.0.0:8200"
disable_mlock = true

Configuration Notes:

  • tls_disable = 1: TLS is handled by Cloudflare tunnel
  • ui = true: Enables the web interface
  • storage "file": Persistent file-based storage
  • disable_mlock = true: Required for Docker on Raspberry Pi

Auto-Initialization Script

The Ansible role creates scripts/auto-unseal.sh:

#!/bin/sh
set -e

INIT_FILE="/vault/data/vault-init.json"

# Wait for Vault to be ready
echo "Waiting for Vault..."
max_attempts=30
attempt=0

while [ $attempt -lt $max_attempts ]; do
  if vault status >/dev/null 2>&1 || [ $? -eq 2 ]; then
    echo "Vault is ready"
    break
  fi
  attempt=$((attempt + 1))
  sleep 2
done

# Check if Vault is initialized
if ! vault status -format=json | grep -q '"initialized":true'; then
  echo "Initializing Vault..."
  vault operator init -key-shares=1 -key-threshold=1 -format=json > "$INIT_FILE"
  echo "Vault initialized! Credentials saved to $INIT_FILE"
  echo "Ansible will handle unsealing..."
else
  echo "Vault already initialized"
fi

# Note: Unsealing is now handled by Ansible after this script completes
vault status || true

How it works:

  1. Script initializes Vault on first run
  2. Saves credentials to vault-init.json
  3. Ansible reads the JSON file and unseals Vault
  4. Systemd ensures this runs on boot

Deployment Steps

Prerequisites

  1. Ansible installed on your Mac
  2. SSH access to Raspberry Pi configured
  3. Cloudflare tunnel authenticated (run cloudflared tunnel login on Pi)

Deploy Vault

cd ansible-configurations
ansible-playbook -i inventory/all.yml playbooks/main.yml --tags vault

The playbook will:

  1. Create vault directories with correct permissions
  2. Deploy Docker Compose configuration
  3. Start Vault container
  4. Initialize Vault (first run only)
  5. Unseal Vault automatically
  6. Enable KV v2 secrets engine
  7. Enable audit logging
  8. Create systemd services for auto-start on boot

Expected Output

TASK [vault : Display Vault access information]
ok: [raspberrypi] => {
    "msg": [
        "==========================================",
        "HashiCorp Vault has been successfully deployed!",
        "==========================================",
        "Access URL: https://vault.iac-toolbox.com",
        "Root Token: hvs.PX0...",
        "",
        "IMPORTANT: Save these credentials securely!",
        "Unseal Key: ...",
        "",
        "Vault initialization details saved to: /home/pi/vault/data/vault-init.json"
    ]
}

IMPORTANT: Save these credentials! You'll need them to access Vault.

Access Vault UI

Open your browser and navigate to:

https://vault.iac-toolbox.com

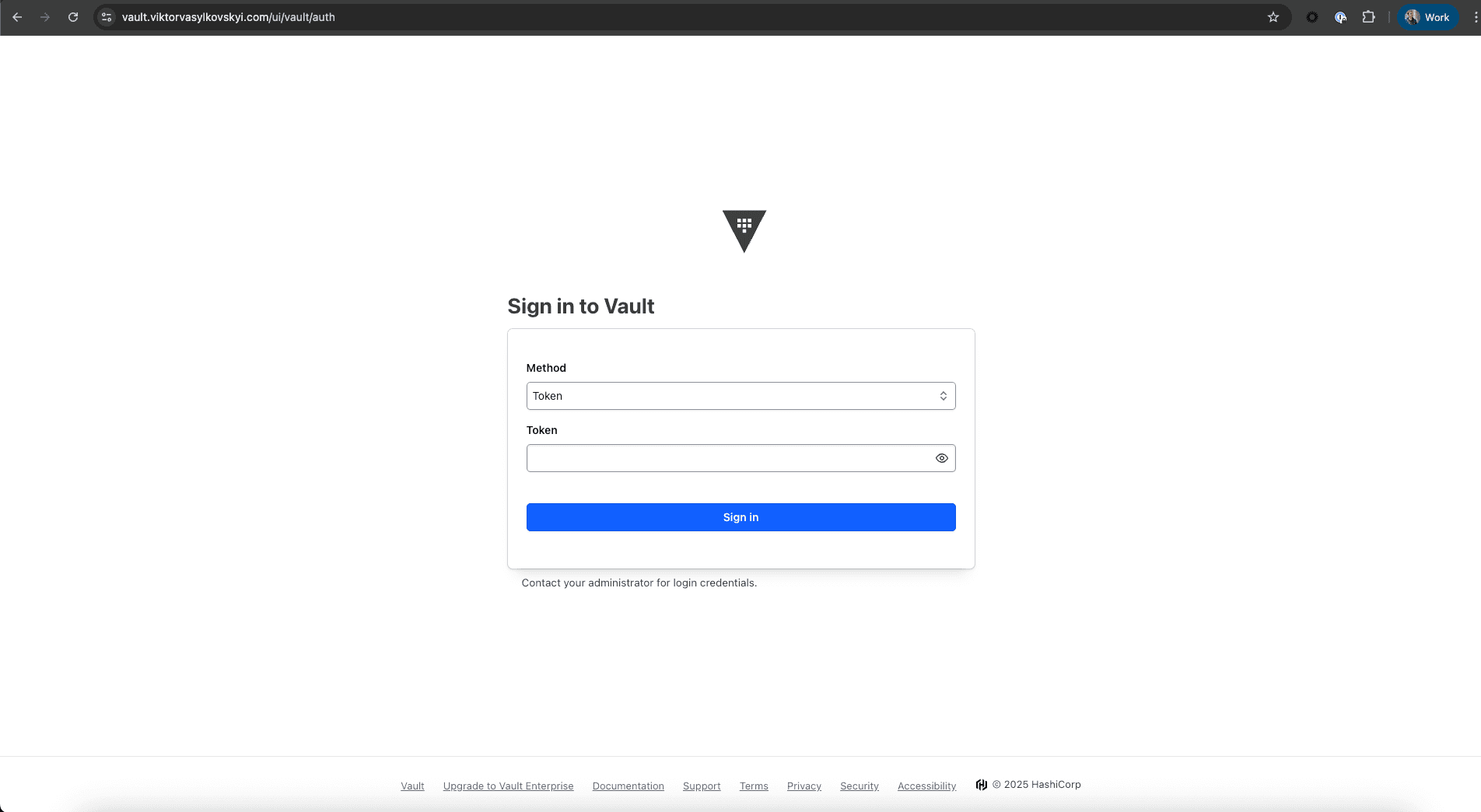

Vault UI Login

Or locally:

http://<your-pi-ip>:8200

Login with the Root Token from the Ansible deployment output.

KV Secrets Engine

The Ansible role automatically enables the KV v2 secrets engine at path kv/. You can verify it's enabled:

ssh pi@raspberrypi
docker exec -e VAULT_TOKEN=<your-root-token> vault vault secrets list

Vault UI Secret Engines

You should see:

Path          Type         Description
----          ----         -----------
kv/           kv           n/a

Creating Your First Secret

Understanding Secret Paths

The KV secrets engine is mounted at kv/. When you create secrets, you organize them by path:

Path Structure:

kv/                          <- Secrets engine mount point
├── myapp/                   <- Application or service name
│   ├── production           <- Environment or config set
│   ├── staging
│   └── development
├── database/
│   └── credentials
└── api-keys/
    ├── github
    └── openai

Important:

  • In the UI, you navigate to kv/myapp/production
  • In the API/CLI, you use kv/data/myapp/production (note the /data/ prefix for KV v2)
  • In GitHub Actions with hashicorp/vault-action, you use kv/data/myapp/production

Create Secret via Web UI

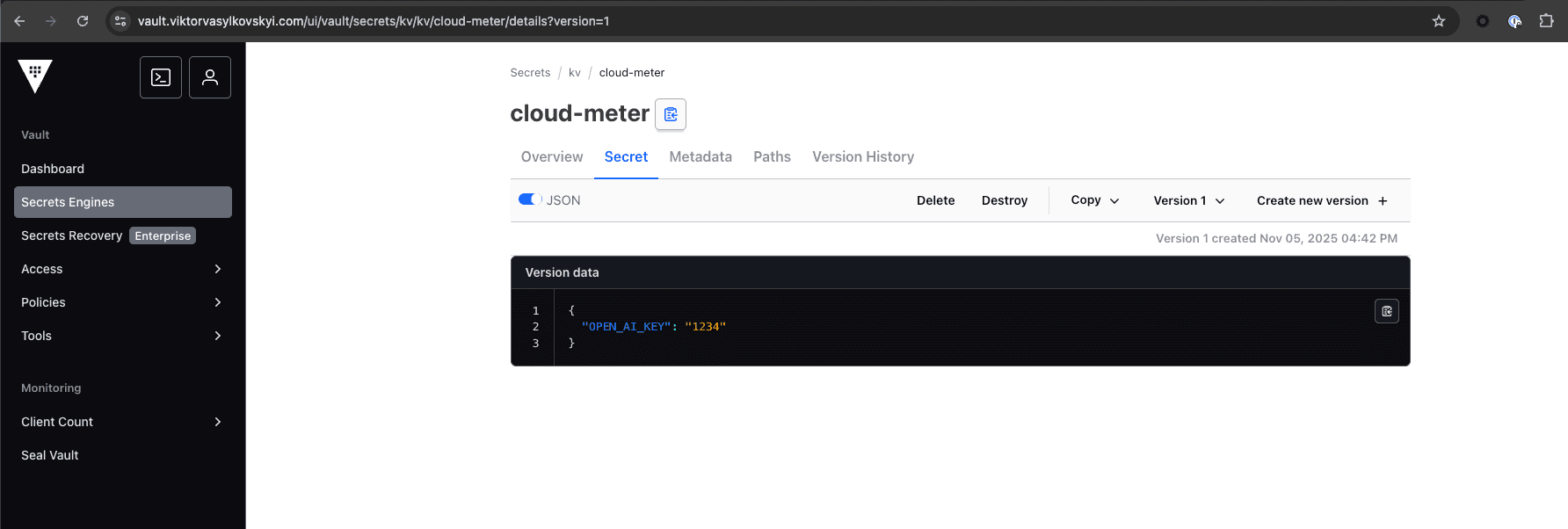

Vault UI Secret Engines

  1. Navigate to https://vault.iac-toolbox.com
  2. Login with your root token
  3. Click on kv/ secrets engine
  4. Click "Create secret +"
  5. Set Path: production (or your preferred path like myapp/production)
  6. Add key-value pairs:
    • Key: DOCKER_USERNAME, Value: your-username
    • Key: DOCKER_PASSWORD, Value: your-password
    • Key: API_KEY, Value: your-api-key
  7. Click "Save"

Your secret is now at: kv/production

Create Secret via CLI

SSH to your Raspberry Pi and run:

# Set your root token
export VAULT_TOKEN="hvs.YOUR_ROOT_TOKEN_HERE"

# Create secret
docker exec -e VAULT_TOKEN=$VAULT_TOKEN vault \
  vault kv put kv/production \
    DOCKER_USERNAME=your-username \
    DOCKER_PASSWORD=your-password \
    API_KEY=your-api-key

Retrieve Secret to Verify

# Get all keys
docker exec -e VAULT_TOKEN=$VAULT_TOKEN vault \
  vault kv get kv/production

# Get specific key
docker exec -e VAULT_TOKEN=$VAULT_TOKEN vault \
  vault kv get -field=API_KEY kv/production

List Your Secrets

# List all secrets in kv/
docker exec -e VAULT_TOKEN=$VAULT_TOKEN vault \
  vault kv list kv/

Alternative: Retrieve Secrets in Docker Containers

For applications running directly in Docker containers (not via GitHub Actions), here are two approaches:

Option 1: Using Environment Variables from GitHub Actions

The recommended approach is to use GitHub Actions to fetch secrets and pass them as environment variables (see the GitHub Actions section above).

Option 2: Using Vault CLI in Container

# Dockerfile
FROM node:18-alpine

# Install Vault CLI
RUN apk add --no-cache curl && \
    curl -fsSL https://releases.hashicorp.com/vault/1.15.0/vault_1.15.0_linux_arm.zip -o vault.zip && \
    unzip vault.zip && \
    mv vault /usr/local/bin/ && \
    rm vault.zip

COPY . /app
WORKDIR /app

# Fetch secrets on startup
COPY startup.sh /startup.sh
RUN chmod +x /startup.sh

ENTRYPOINT ["/startup.sh"]
#!/bin/sh
# startup.sh

export VAULT_ADDR=http://vault:8200

# Fetch secrets
export API_KEY=$(vault kv get -field=API_KEY kv/myapp)
export DATABASE_URL=$(vault kv get -field=DATABASE_URL kv/myapp)

# Start application
exec node server.js

Option 3: Using Vault Agent (Advanced)

Vault Agent handles authentication and secret rotation automatically:

# docker-compose.yml for your app
services:
  myapp:
    image: myapp:latest
    depends_on:
      - vault-agent
    volumes:
      - vault-secrets:/vault/secrets
    environment:
      - VAULT_ADDR=http://vault:8200

  vault-agent:
    image: hashicorp/vault:latest
    volumes:
      - ./vault-agent-config.hcl:/vault/config/agent.hcl
      - vault-secrets:/vault/secrets
    command: agent -config=/vault/config/agent.hcl

volumes:
  vault-secrets:

Step 12: Using Secrets with GitHub Actions

Your GitHub Actions workflow can fetch secrets from Vault using the official HashiCorp Vault Action plugin.

Configure GitHub Secrets

First, add your Vault token to GitHub Secrets:

  1. Go to your repository → Settings → Secrets and variables → Actions
  2. Add new secret:
    • Name: VAULT_TOKEN
    • Value: Your Vault root token (or better, create a limited token)

Create a Limited Vault Token for GitHub Actions

Don't use the root token! Create a limited token with only the permissions needed:

# On Raspberry Pi, create a policy for the GitHub runner
# Replace 'production' with your actual secret path
docker exec -e VAULT_TOKEN=<root-token> vault vault policy write github-runner-policy - <<EOF
# Allow reading secrets from production path
path "kv/data/production" {
  capabilities = ["read"]
}

# Allow listing secrets (optional)
path "kv/metadata/production" {
  capabilities = ["list", "read"]
}
EOF

# Create a token with this policy
docker exec -e VAULT_TOKEN=<root-token> vault \
  vault token create \
  -policy=github-runner-policy \
  -ttl=720h \
  -display-name="github-actions-runner"

Save the generated token as VAULT_TOKEN in GitHub Secrets:

  1. Go to your repository → Settings → Secrets and variables → Actions
  2. Add new secret: VAULT_TOKEN with the token value

Complete GitHub Actions Workflow Example

Create .github/workflows/deploy.yml:

name: Build and Deploy

on:
  push:
    branches: [main]
  workflow_dispatch:

jobs:
  build_docker_image:
    runs-on: [self-hosted, ARM64]
    outputs:
      tag: ${{ steps.set_tag.outputs.tag }}
    steps:
      - name: Check out the repo
        uses: actions/checkout@v4

      # Fetch secrets from Vault
      - name: Import Secrets from Vault
        id: secrets
        uses: hashicorp/vault-action@v2.4.0
        with:
          url: http://localhost:8200
          token: ${{ secrets.VAULT_TOKEN }}
          secrets: |
            kv/data/production DOCKER_USERNAME | DOCKER_USERNAME ;
            kv/data/production DOCKER_PASSWORD | DOCKER_PASSWORD

      - name: Log in to Docker Hub
        uses: docker/login-action@v3
        with:
          username: ${{ env.DOCKER_USERNAME }}
          password: ${{ env.DOCKER_PASSWORD }}

      - name: Build and Push Container Image
        run: |
          TAG=${{ github.sha }}
          docker build -f ./Dockerfile -t ${{ env.DOCKER_USERNAME }}/myapp:$TAG .
          docker push ${{ env.DOCKER_USERNAME }}/myapp:$TAG

      - name: Set output tag
        id: set_tag
        run: echo "tag=${{ github.sha }}" >> "$GITHUB_OUTPUT"

  deploy:
    runs-on: [self-hosted, ARM64]
    needs: build_docker_image
    steps:
      # Fetch secrets from Vault
      - name: Import Secrets from Vault
        id: secrets
        uses: hashicorp/vault-action@v2.4.0
        with:
          url: http://localhost:8200
          token: ${{ secrets.VAULT_TOKEN }}
          secrets: |
            kv/data/production DOCKER_USERNAME | DOCKER_USERNAME ;
            kv/data/production API_KEY | API_KEY

      - name: Stop existing container
        run: |
          docker stop my-app || true
          docker rm my-app || true

      - name: Pull and run new container
        run: |
          TAG=${{ needs.build_docker_image.outputs.tag }}
          docker pull ${{ env.DOCKER_USERNAME }}/myapp:$TAG
          docker run -d \
            --name my-app \
            -p 80:80 \
            -e API_KEY=${{ env.API_KEY }} \
            --restart unless-stopped \
            ${{ env.DOCKER_USERNAME }}/myapp:$TAG

Understanding the Vault Action

The hashicorp/vault-action plugin automatically:

  • Connects to your Vault instance
  • Authenticates with the token
  • Fetches the specified secrets
  • Exports them as environment variables

Syntax:

secrets: |
  kv/data/<your-path> <KEY_NAME> | ENV_VAR_NAME ;
  kv/data/<your-path> <KEY_NAME> | ENV_VAR_NAME

Critical Requirements:

  • Semicolons are required when fetching multiple secrets
  • Each line except the last must end with ;
  • Without semicolons, the vault-action will treat all lines as a single malformed path and fail

Examples:

  • kv/data/production API_KEY | API_KEY - fetches API_KEY from kv/production and exports as $API_KEY
  • kv/data/myapp/prod DOCKER_USERNAME | DOCKER_USERNAME - fetches from kv/myapp/prod
  • Replace <your-path> with where you stored the secret

Security Best Practices for GitHub Actions

❌ Don't Do This:

on:
  pull_request:  # DANGEROUS! Forks can access secrets
token: ${{ secrets.VAULT_ROOT_TOKEN }}  # Never use root token
cat > /tmp/app.env << EOF  # Insecure temp file
API_KEY=$API_KEY
EOF

✅ Do This Instead:

1. Limit trigger events:

on:
  push:
    branches: [main]  # Protected branch only
  workflow_dispatch:  # Manual only

2. Use branch protection:

if: github.ref == 'refs/heads/main'  # Extra check

3. Restrict permissions:

permissions:
  contents: read  # Minimal permissions

4. Create limited Vault tokens:

# Only read access to specific paths
vault policy write github-runner-policy - <<EOF
path "kv/data/myapp" {
  capabilities = ["read"]
}
EOF

5. Secure temporary files:

ENV_FILE=$(mktemp)
chmod 600 "$ENV_FILE"  # Only owner can read
# ... use file ...
shred -u "$ENV_FILE"   # Securely delete

6. Rotate tokens regularly:

# Set TTL when creating tokens
vault token create -policy=github-runner-policy -ttl=720h

7. Enable GitHub environment protection:

In your repository settings, create an environment (e.g., "production"):

  • Require reviewers before deployment
  • Limit to specific branches
  • Add secrets specific to that environment

Then update your workflow:

jobs:
  deploy:
    runs-on: self-hosted
    environment: production  # Requires approval

Multi-Environment Setup

For different environments (dev, staging, prod):

name: Deploy Multi-Environment

on:
  push:
    branches: [main, staging, dev]

jobs:
  deploy:
    runs-on: self-hosted

    steps:
      - name: Checkout
        uses: actions/checkout@v4

      - name: Set environment
        id: env
        run: |
          if [[ "${{ github.ref }}" == "refs/heads/main" ]]; then
            echo "name=production" >> $GITHUB_OUTPUT
          elif [[ "${{ github.ref }}" == "refs/heads/staging" ]]; then
            echo "name=staging" >> $GITHUB_OUTPUT
          else
            echo "name=development" >> $GITHUB_OUTPUT
          fi

      - name: Import Secrets
        uses: hashicorp/vault-action@v2.4.0
        with:
          url: http://localhost:8200
          token: ${{ secrets.VAULT_TOKEN }}
          secrets: |
            kv/data/${{ steps.env.outputs.name }}/myapp API_KEY | API_KEY ;
            kv/data/${{ steps.env.outputs.name }}/myapp DATABASE_URL | DATABASE_URL

      - name: Deploy
        run: |
          echo "Deploying to ${{ steps.env.outputs.name }}"
          docker compose up -d

This fetches secrets from different paths based on the branch:

  • main → kv/production/myapp
  • staging → kv/staging/myapp
  • dev → kv/development/myapp

Note: Remember the semicolon after the first secret line!

Automated Unsealing on Boot

Vault "seals" itself on restart for security. The Ansible role creates systemd services that automatically unseal Vault on boot.

Systemd Services

/etc/systemd/system/vault.service

[Unit]
Description=HashiCorp Vault
After=docker.service
Requires=docker.service

[Service]
Type=oneshot
RemainAfterExit=yes
WorkingDirectory=/home/pi/vault
ExecStart=/usr/bin/docker compose up -d
ExecStop=/usr/bin/docker compose down
User=pi

[Install]
WantedBy=multi-user.target

/etc/systemd/system/vault-unseal.service

[Unit]
Description=Vault Auto-Unseal
After=vault.service
Requires=vault.service

[Service]
Type=oneshot
WorkingDirectory=/home/pi/vault
ExecStartPre=/bin/sleep 10
ExecStart=/usr/bin/docker compose --profile unseal run --rm vault-unsealer
User=pi

[Install]
WantedBy=multi-user.target

How it works:

  1. On boot, vault.service starts the Vault container
  2. After 10 seconds, vault-unseal.service runs the initialization/unseal script
  3. Ansible parses vault-init.json and unseals Vault if needed
  4. Your Vault is now unsealed and ready to use!

Verify services:

ssh pi@raspberrypi
sudo systemctl status vault
sudo systemctl status vault-unseal

Updating Secrets

Via UI:

  1. Navigate to your secret (e.g., kv/myapp)
  2. Click "Create new version"
  3. Update the values
  4. Click "Save"

Vault keeps all previous versions!

Via CLI:

docker exec -e VAULT_TOKEN=<token> vault \
  vault kv put kv/myapp API_KEY=new-key-here

View Secret History:

# List versions
docker exec -e VAULT_TOKEN=<token> vault \
  vault kv metadata get kv/myapp

# Get specific version
docker exec -e VAULT_TOKEN=<token> vault \
  vault kv get -version=1 kv/myapp

GitHub Actions Security Checklist

Before deploying with GitHub Actions, ensure:

  • No pull_request triggers - Only push to protected branches
  • Limited Vault token - Not using root token
  • Branch protection enabled - Require reviews for main branch
  • Self-hosted runner secured - Runner has restricted access
  • Token rotation scheduled - Set TTL and rotate regularly
  • Audit logging enabled - Track all Vault access
  • Environment protection - Use GitHub environments for production

Security Best Practices

Don't Use Root Token for Apps

The root token has unlimited permissions. Create limited tokens for applications:

# Create policy for app
docker exec -e VAULT_TOKEN=<root-token> vault vault policy write myapp-policy - <<EOF
path "kv/data/myapp" {
  capabilities = ["read"]
}
EOF

# Create token with policy
docker exec -e VAULT_TOKEN=<root-token> vault \
  vault token create -policy=myapp-policy -ttl=720h

Use this limited token in your applications instead of the root token.

Backup Your Vault Data

Critical files to backup:

  • ~/vault/data/vault-init.json - Root token and unseal key
  • ~/vault/data/ - All vault data
# On Raspberry Pi
cd ~
sudo tar -czf vault-backup-$(date +%Y%m%d).tar.gz vault/data/

# Copy to safe location
scp vault-backup-*.tar.gz user@backup-server:/backups/

Important: Store backups encrypted and off-device!

Audit Logging

Audit logging is automatically enabled by the Ansible role. View logs:

ssh pi@raspberrypi
tail -f ~/vault/logs/audit.log | jq

To check if enabled:

docker exec -e VAULT_TOKEN=<root-token> vault vault audit list

Clean Up and Redeploy

If you need to completely reset Vault:

ssh pi@raspberrypi
cd ~/vault && docker compose down && sudo rm -rf data && mkdir -p data && sudo chown 100:1000 data

Then re-run the Ansible playbook:

ansible-playbook -i inventory/all.yml playbooks/main.yml --tags vault

Troubleshooting

Vault Won't Unseal

Check unseal key:

ssh pi@raspberrypi
cat ~/vault/data/vault-init.json

Manual unseal:

# Get unseal key from vault-init.json
docker exec vault vault operator unseal <unseal-key>

Container Won't Start

Check logs:

ssh pi@raspberrypi
docker logs vault

Common issues:

  • Port 8200 already in use: sudo lsof -i :8200
  • Permission errors: Data directory should be owned by UID 100
  • Storage issues: Ensure ~/vault/data exists with correct permissions

Fix permissions:

cd ~/vault
sudo chown 100:1000 data
sudo chown 100:1000 logs

Forgot Root Token

If you lose your root token, you can generate a new one:

# Unseal first
docker exec vault vault operator unseal <unseal-key>

# Generate root token
docker exec -it vault vault operator generate-root -init
docker exec -it vault vault operator generate-root

Secrets Not Available in Container

Check Vault address:

docker exec myapp env | grep VAULT_ADDR

Test connectivity:

docker exec myapp curl http://vault:8200/v1/sys/health

Verify token permissions:

docker exec -e VAULT_TOKEN=<token> vault \
  vault token lookup

Comparison: Ansible Vault vs HashiCorp Vault

FeatureAnsible VaultHashiCorp Vault
Secrets on diskPlain text (/etc/raspberrypi.env)Encrypted at rest
Access patternRead from fileFetch via API
RotationManual re-deploymentUpdate in place
Audit loggingNoneBuilt-in
Dynamic secretsNoYes
UINoYes
ComplexitySimpleModerate
Best forBasic setupsProduction systems

Security Trade-offs: This Setup Isn't Perfect Either

Let's be honest: no security system is bulletproof. While HashiCorp Vault is a massive improvement over plain text files, this particular setup has trade-offs you should understand.

Remaining Security Concerns

1. Auto-Unseal Keys Stored on Disk

Our setup stores the unseal key in /home/pi/vault/data/vault-init.json to enable automatic unsealing on boot.

The problem:

# Anyone with SSH access can read this file
cat ~/vault/data/vault-init.json
# This gives them the unseal key and root token

Why we accept this trade-off:

  • Without auto-unseal, your Vault stays sealed after every reboot
  • You'd need to manually SSH in and unseal Vault after power outages
  • For a home lab or small production setup, this is impractical
  • Enterprise Vault uses cloud KMS for auto-unseal, but that's overkill (and expensive) for a Raspberry Pi

Mitigation:

  • Restrict SSH access tightly (key-based auth only, no password)
  • Use fail2ban to prevent brute force attacks
  • Keep system packages updated
  • For truly sensitive secrets, use cloud-hosted Vault (AWS, GCP) with KMS auto-unseal

2. TLS Disabled (Cloudflare Handles It)

Our vault.hcl has tls_disable = 1:

listener "tcp" {
  address     = "0.0.0.0:8200"
  tls_disable = 1
}

The problem:

  • Communication between containers and Vault on localhost is unencrypted
  • If someone compromises your Pi, they can sniff local network traffic

Why we accept this trade-off:

  • Cloudflare tunnel provides TLS for external access
  • localhost traffic doesn't leave the machine
  • Enabling TLS requires certificate management and renewal
  • Self-hosted runners on the same Pi don't need TLS for localhost

Mitigation:

  • Only access Vault UI via Cloudflare tunnel (https://vault.iac-toolbox.com)
  • For production at scale, enable TLS with Let's Encrypt or internal CA
  • Monitor for unauthorized processes on the Pi

3. File-Based Storage (Not Clustered)

We use storage "file" instead of a distributed backend like Consul:

storage "file" {
  path = "/vault/data"
}

The problem:

  • Single point of failure - if the SD card corrupts, you lose all secrets
  • No high availability - Vault goes down when the Pi reboots
  • Can't scale to multiple Vault instances

Why we accept this trade-off:

  • Running a Consul cluster for a single Pi is massive overkill
  • SD card corruption is rare with modern cards and proper shutdown procedures
  • Downtime during reboots is acceptable for home labs and small deployments
  • We can still backup the data directory regularly

Mitigation:

# Automated backup script (run via cron)
tar -czf vault-backup-$(date +%Y%m%d).tar.gz ~/vault/data/
rsync -avz vault-backup-*.tar.gz user@backup-server:/backups/

4. Root Token Usage

For simplicity, we use the root token in GitHub Actions (or a long-lived token).

The problem:

  • Tokens don't expire automatically
  • If GitHub Secrets are compromised, attacker gets full Vault access
  • No dynamic credential rotation

Why we accept this trade-off:

  • Setting up AppRole auth adds significant complexity
  • For self-hosted runners on the same Pi, security boundary is already breached if compromised
  • Token rotation with 720h TTL is a reasonable middle ground
  • Most home labs don't need dynamic credentials

Mitigation:

  • Use policy-restricted tokens, never the actual root token
  • Set reasonable TTLs (720h = 30 days)
  • Rotate tokens quarterly
  • For production at scale, implement AppRole or Kubernetes auth

Why This Setup Is Still Production-Ready

Despite these trade-offs, this configuration is solid for most use cases:

✅ For Small Production Deployments:

  • Single-server setups (1-5 applications)
  • Controlled access (small team, known users)
  • Acceptable downtime window (minutes, not milliseconds)
  • Budget-conscious (no cloud KMS fees)

✅ Compared to Alternatives:

  • Much better than: Plain text env files, GitHub Secrets for everything, hardcoded credentials
  • On par with: Cloud-hosted secrets managers for single-instance apps (AWS Secrets Manager, GCP Secret Manager cost $$$)
  • Not as robust as: Multi-region Vault Enterprise with HSM, but that costs thousands/month

✅ Real-World Production Use:

  • Startups use this exact setup for their first few services
  • Side projects that make money run on similar configurations
  • Internal tools and admin dashboards don't need Fort Knox security

When to Upgrade

You should consider enterprise Vault or cloud-hosted solutions when:

  • Multi-datacenter deployment - Need Vault in multiple regions
  • Strict compliance requirements - HIPAA, PCI-DSS, SOC 2
  • Team size >10 people - Need sophisticated access policies
  • SLA requirements - Need 99.99% uptime guarantees
  • Dynamic secrets at scale - Generating thousands of temp credentials daily

The Bottom Line

Perfect security doesn't exist. Every system has trade-offs between:

  • Security vs. Convenience
  • Cost vs. Features
  • Complexity vs. Maintainability

This Vault setup dramatically improves your security posture from plain text files while remaining:

  • Practical - You can maintain it yourself
  • Affordable - Runs on a $50 Raspberry Pi
  • Automated - Survives reboots without manual intervention
  • Sufficient - Good enough for most production workloads

Key insight: The biggest security improvements come from basic hygiene (not leaving secrets in plain text, using access controls, having audit logs). The remaining edge cases require exponentially more effort for marginal gains.

For a home lab, side project, or small startup? This setup is excellent. You've got 90% of the security at 10% of the complexity.

Next Steps

You now have enterprise-grade secrets management on your Raspberry Pi! Here's what you can do:

  1. Create application-specific policies - Don't use the root token for apps
  2. Store your application secrets - Move secrets from GitHub Secrets to Vault
  3. Update your CI/CD pipelines - Configure GitHub Actions to use Vault
  4. Set up secret rotation - Regularly rotate API keys and tokens
  5. Enable AppRole authentication - For better security than static tokens
  6. Configure backup automation - Schedule regular backups of Vault data

Your secrets are now secure, versioned, and audited. No more plain text files!

Previous: Managing Secrets | Next: Grafana Setup
